ATEX Equipment

We have a range of ATEX rated equipment for hazardous area applications including weight indicators, load cells and junction boxes.

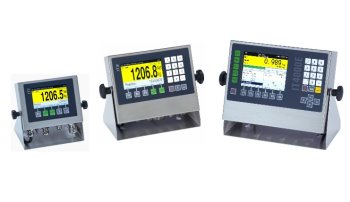

SysTec Ex2/22



Zone 2/22 versions of the standard indicators IT1, IT3, IT4000E, IT6000E and IT8000E are available either mains or dc powered and in standard enclosures or panel mount versions. The IT1 and IT3 models also have external battery versions. All of the features and programs of the standard indicators are available. The ratings are:


IT1 Ex2/22 & IT3 Ex2/22:

    II 3G Ex e ic IIC T4 Gc
    II 3D Ex ic tc IIIC T135°C Dc

IT4000E Ex2/22, IT6000E Ex2/22 & IT8000E Ex2/22:

    II 3G Ex ic nA IIC T4 Gc
    II 3D Ex ic tc IIIC T135°C Dc





SysTec IT3000Ex



The SysTec IT3000Ex is rated for zone 1 & 21 applications. It is available mains, dc, or battery powered and in standard enclosure or panel mount versions. The indicator has several modes of operation to provide functions for printing, counting, totalising, checkweighing and filling. Various options are available including digital I/O and communications interfaces. The ratings are:

    II 2(2)G Ex e ib mb [ib] IIC T4 Gb
    II 2(2)D Ex ib tb [ib] IIIC T125°C Db IP65





SysTec IT8000Ex



The SysTec IT8000Ex is rated for zone 1 & 21 applications. It is available mains, dc, or battery powered and in standard enclosure or panel mount versions. It is freely programmable and several standard applications are available including product lookup (with features for printing, counting, filling, totalising, checkweighing/checkcounting, etc.), batching (recipe weighing), statistical quality control (average weight), filling, dynamic checkweighing, loss-in-weight, belt weighing (continuous totaliser), discontinuous totalising, and truck weighing. Various options are available including digital I/O and communications interfaces. The ratings are:

    II 2G Ex e mb [ib] IIB/IIC T4
    II 2D Ex tD A21 [ibD] IP65 T60°C

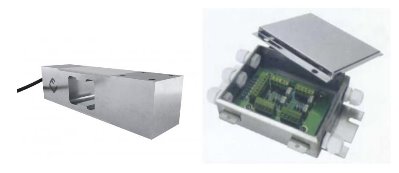

ATEX load cells & junction boxes



Load cells and junction boxes are available for ATEX applications up to zone 0/20. Single point load cell capacities range from 7.5kg to 750kg and shear beam load cell capacities from 90kg to 2,200kg. Junction boxes are stainless steel, IP67 and available with 4, 6, or 8 inputs.
